HYDRAULICS BENCH
For water supply and measurement of volume flow rate. A 0.37 kW pump with 10 and 45 lt measuring tank, and storage tank.....
Product Code: FM101
HYDRAULIC BENCH, Gravimetric
For water supply and measurement of weight rate of flow. A 0.37 kW Pump with 45 kg measuring tank, weights, and storage tank.....
Product Code: FM102
CHANNELED TANK
For use in testing a flow over a notch on HB 100G Hydraulics Bench, gravimetric....
Product Code: H3
DEAD WEIGHT PRESSURE TESTER
A 0.5 kg piston with 250 mm 2 piston crossection, calibrated weights and 0-3 kg/cm2 pressure gauge.....
Product Code: H4
HYDROSTATIC PRESSURE
Quadrant inner radius 100 mm, outer radius 200 mm, and width 75 mm. Balance arm with counter weight and weights. Transparent tank 6 lt....
Product Code: H5
HYDROSTATIC PRESSURE, Tilting Submerged Quadrant
Quadrant inner radius 100 mm, outer radius 200 mm, and width 75 mm. Tilting up to 30 degrees in either direction. Balance arm with counter weight, and weights. Transparent tank 8 lt....
Product Code: H6
HYDROSTATIC PRESSURE, Tilting Jar Quadrant
Transparent quadrant inside inner radius 100 mm, inside outer radius 200 mm, inside width 75 mm. Tilting upto 30 degrees in either direction. Balance arm with counter weight and weights.....
Product Code: H7
FLOW OVER A NOTCH
Rectangular notch, 60° and 90° V-notches. 150 mm stainless steel vernier hook and point gauge....
Product Code: H8
METACENTRIC HEIGHT
For a study of stability of a floating body. 400 mm long x 200 mm wide x 100 mm high pontoon. 450 mm mast height, maximum tilt ±13°....
Product Code: H9
BERNOULLI\'S THEOREM
Venturi tube diameters 28 and 14 mm, total head probe and manometer 8 tubes x 500 mm....
Product Code: H10
FLOW METERS
Variable area flow meter upto 35 lpm, Venturi tube diameters 29 and 17 mm, orifice plate diameter 20 mm on 29 mm tube, Pitot tube in 19 mm tube. Water manometer 8 tubes x 500 mm....
Product Code: H11
PIPE FRICTION
Adjustable constant head 800-1000 mm, storage tank, 500 mm water manometer, 500 mm mercury manometer, test section 510 mm long x 3 mm diameter, vertical or horizontal pipe.....
Product Code: H12

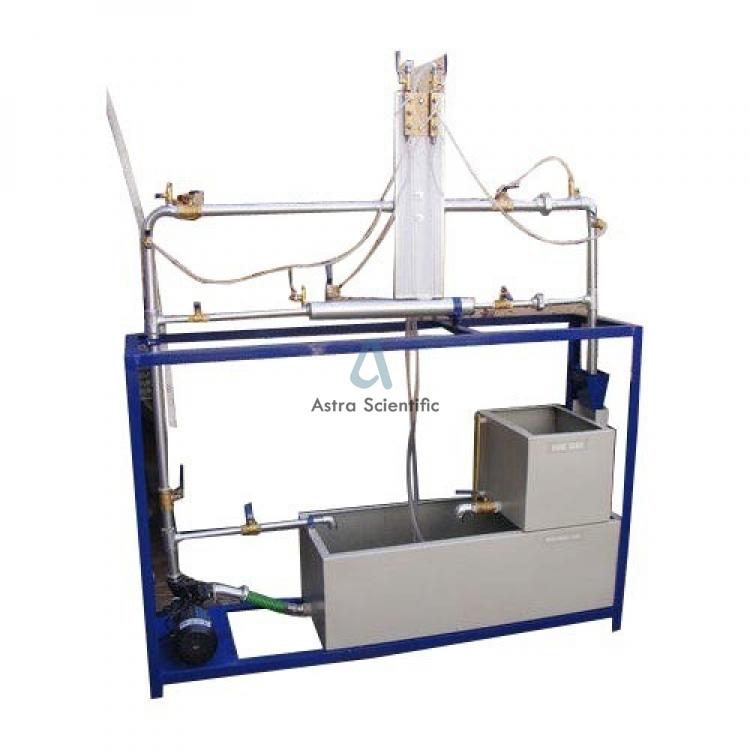

BENDS AND FITTINGS FRICTION
Pipe diameter 20 mm, enlarged pipe diameter 35 mm. Fittings : 90° miter bend, 90° elbow, 90° small radius bend, 90° large radius bend, 45° elbows, sudden expansion and contraction. Water manometer 8 tubes x 500 mm....
Product Code: H13
ORIFICE AND JET FLOW
Orifice diameter 4 mm and 8 mm, 8 trajectory probes, 420 mm maximum constant head, measuring cup.....
Product Code: H14
IMPACT OF JET
Nozzle diameter 7 mm, target plate diameter 36 mm target plates : flat, 120° cone, 180° hemisphere. Transparent tank.....
Product Code: H15
FLOW THROUGH AN ORIFICE
Standard sharp edge orifice 13 mm diameter and additional different orifices. Maximum head 370 mm, transparent tank, traverse mechanism screw division 0.01 mm....
Product Code: H16
FREE AND FORCED VORTEX, Rotating Paddle
Transparent tank diameter 250 mm, with 180 mm over flow height. 4 orifices of different diameters, and rotating paddle. 6 profile probes, pitot tubes.....
Product Code: H17
FREE AND FORCED VORTEX, Rotating Tank
Transparent tank diameter 400 mm x 180 mm high. Concentric perforated cylinder diameter 300 mm. Drive motor with speed control, cross bar with depth probe and Pitot probe.....
Product Code: H18
MINI AXIAL FLOWPROPELLER TURBINE
33.5 mm diameter stainless steel guide vanes, runner. Transparent window and runner section. Prony brake with spring balances, mercury manometer, and hand tachometer. Output : 10W from 0.37kW pump.....
Product Code: H19
MINI AXIAL FLOW IMPULSE TURBINE
68 mm diameter stainless steel runner and housing. Transparent discharge window. Prony brake with spring balances, pressure gauge, and hand tachometer. Output : 25W from 0.37kW pump.....
Product Code: H20
MINI FRANCIS TURBINE
66 mm diameter bronz runner, non corrosion metal housing and transparent window. Prony brake with spring balances, pressure gauge and hand tachometer. Output : over 25 W from 0.37 kW pump.....
Product Code: H21
MINI KAPLAN TURBINE
33.5 mm diameter stainless steel runner, non corrosion metal housing, and transparent window and runner section. Prony brake with spring balances, pressure gauge, and hand tachometer. Output : 15W from 0.37kW pump.....
Product Code: H22
MINI PELTON TURBINE
160 mm diameter stainless steel runner. Stainless steel nozzle, and housing with transparent window. Prony brake with spring balances, pressure gauge and hand tachometer. Output : over 40 W from 0.37kW pump.....
Product Code: H23

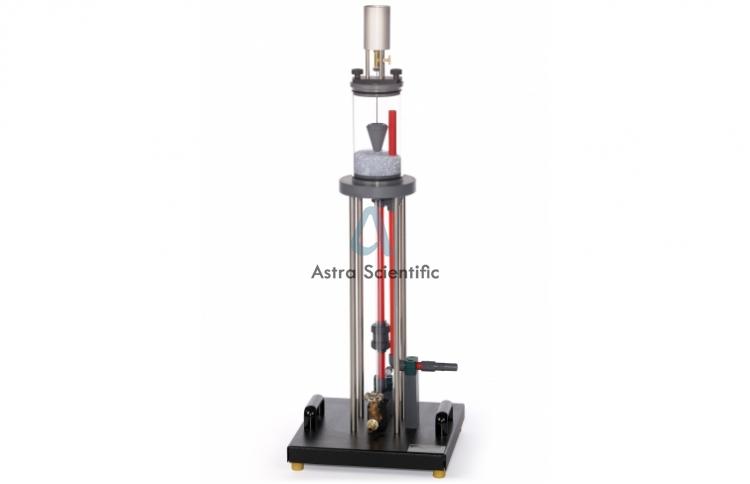

OSBORNE REYNOLDS APPARATUS
Vertical test pipe diameter 14 mm with bell mouth, pipe length 720 mm. , stilling tank, 0.5 lt dye reservoir with a needle. 2 lt measuring cup transparent tank.....
Product Code: H24
OSBORNE REYNOLDS APPARATUS
Horizontal test pipe diameter 14 mm with bell mouth, pipe length 720 mm. , transparent test pipe shell with stilling baffle, 0.5 lt dye reservoir with a needle. 2 lt measuring cup transparent tank.....
Product Code: H25
HYDRAULIC RAM PUMP
Demonstration of the effect of hydraulic ram where a large supply of flowing water at low head is made to deliver a small amount of water at a higher head. Upto 100 cm supply head and upto 200 cm delivery head.....
Product Code: H26
LAMINAR FLOW APPARATUS
Channel size 260 mm wide x 360 mm long, 5 source/sink holes, dye reservoir with 18 stream lines, various rubber models.....
Product Code: H27
MINI FLOW CHANNEL
Channel : 620 mm long x 15 mm wide x 180 mm deep and tank with stilling materials. Models : small cylinder, large cylinder, narrow crested weir, broad crested weir, crump weir, symmetrical aerofoil, asymmetrical aerofoil. 0.5 lt dye reservoir with 5 stream lines.....
Product Code: H28
CENTRIFUGAL PUMP
A 0.55 kW pump and motor with advanced inverter with speed and input power indication, pressure gauges.....
Product Code: H29
SERIES AND PARALLEL PUMPS, Fixed Speed
A fixed speed centrifugal pump is connected with pipings to a Hydraulics Bench for the study of two pumps in series or parallel operation.....
Product Code: FM130
SERIES AND PARALLEL PUMPS, Multi Speed
Two 3 speed centrifugal pumps connected together with pipings and valves for series and parallel operation.....
Product Code: FM131
CAVITATION PANEL
Transparent Venturi tube with pressure gauges . For use with Hydraulics Bench or outside water supply.....
Product Code: FM132
HYDROSTATICS BENCH
A self contained bench with equipment for calibration, determination, measurement and demonstration of various properties or behavior of fluids under static conditions. Over 15 experiments....
Product Code: FM133
PRESSURE MEASUREMENT APPARATUS
This apparatus is for studying and understanding the basic pressure measuring devices using manometers and pressure gauges. Pressure / vacuum generated by a pump. Dead weight pressure tester.....
Product Code: FM134
PARTICLE DRAG COEFFICIENTS
Two glass tube columns 100 mm diameter x 1.5 m long with top guide, bottom valves and back fluorescent lamp. Ball spheres of different materials, shapes, and diameters, stop watch.....
Product Code: FM135
LIQUID SEDIMENTATION APPARATUS
Five vertical transparent glass tubes 50 mm inside diameter 1 m long with scale and back light. Sediment rate is observed using stop watch.....
Product Code: FM136
PIPING LOSS TEST SET, Small
A self contained set for measuring losses in straight pipes, bends, fittings and valves. Pump, storage tank, and measuring instruments. No pressure hose relocation required. Optional accessories.....
Product Code: FM137
PIPING LOSS APPARATUS, Small
A mobile panel for measuring losses in straight pipes, bends, fittings and valves for use with a Hydraulics Bench or outside water supply. No pressure hose relocation required. Optional accessories.....
Product Code: FM138
COMPACT PIPING LOSS TEST SET, Small
A self contained set for measuring losses in straight pipes, bends, fittings and valves. Pump, storage tank and measuring instruments. No pressure hose relocation required. Optional accessories.....
Product Code: FM139
PIPING LOSS TEST SET, Large
A self contained set for measuring losses in straight pipes, bends, fittings, and valves. Primary flow measuring devices. Pump, storage tank and measuring instruments. No pressure hose relocation required. Optional accessories.....
Product Code: FM140
PIPING LOSS APPARATUS, LARGE
A mobile panel for measuring losses in straight pipes, bends, fittings and valves with primary flow measuring devices for use with a Hydraulics Bench or outside water supply.No pressure hose relocation required. Optional accessories....
Product Code: FM141
COMPACT PIPING LOSS TEST SET, Large
A self contained set for measuring losses in straight pipes, bends, fittings, and valves. Primary flow measuring devices. Pump, storage tank, measuring instruments. No pressure hose relocation required. Optional accessories.....
Product Code: FM142
A set of pipes and man PIPE NETWORK APPARATUS
ifolds for various network configuration connections with “O” ring screw coupling and pressure tapping valves. Hydraulics Bench, water and mercury manometers....
Product Code: FM143
WATER HAMMER APPARATUS
Two flow pipes one with manual closing valve for pipe surge study and the other with quick closing valve for a water hammer study. The set is for use with Hydraulics Bench, pressure sensors, signal converter and software for data display on computer.....
Product Code: FM144
CAVITATION TEST SET
A self contained unit. Transparent Venturi tube, pressure gauges, pump, storage tank, and variable area flow meter.....
Product Code: FM145
Flow Measurement Test Set
A self contained set for flow measurement by Venturi meter, orifice meter, Pitot tube, variable area flow meter, water meter, measuring tank. Storage tank, and pump.....
Product Code: FM146
GROUND WATER FLOW APPARATUS
A self contained set for flow measurement by Venturi meter, orifice meter, Pitot tube, variable area flow meter, water meter, measuring tank. Storage tank, and pump.....
Product Code: FM147
GROUND WATER FLOW APPARATUS
100 cm long x 60 cm wide x 40 cm deep fiber glass tank. Two inlet pipes and two outlet wells. Manometer, sand, and models.....
Product Code: FM148
PERMEABILITY APPARATUS
1600 mm long x 125 mm wide x 650 mm high stainless steel tank with glass front, 15 pressure tapping points and manometers, over flow pipes, complete with pump, tank, dye injection, end baffles, sand and models.....
Product Code: FM149
BASIC HYDROLOGY APPARATUSBASIC HYDROLOGY APPARATUS
A stainless steel tank with tilting mechanism. Two side compartments, two wells, and eight sprinkler nozzles. Complete with storage tank, pump, flow meter, and calibrated weir, and sand.....
Product Code: FM150

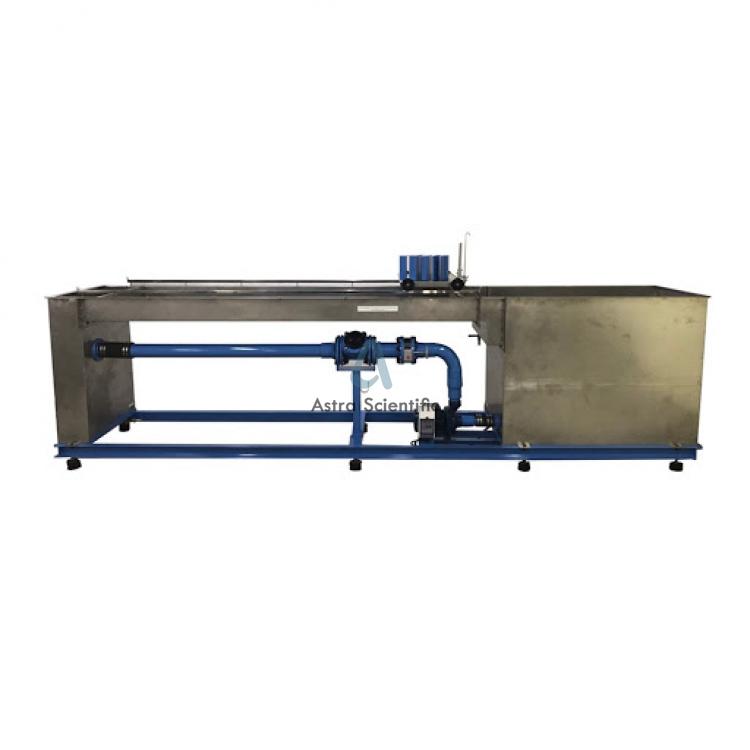

SEDIMENT BED AND FLOW VISUALIZATION
Working section 650 mm wide, 2.20 m long and 150 mm high with 60 mm sand bed. Head tank, storage tank with sand trap and adjustable overshot weir, circulating pump, ripples measuring devices, sand, and various accessories.....
Product Code: FM151
SEDIMENT FLOW CHANNEL, 75 mm. wide
7.5 cm wide x 15 cm high x 200 cm long , 0 to +10% tilting channel with pump, feed tank, storage tank, sand, and accessories.....
Product Code: FM152
VISUALIZED FLOW CHANNEL, 50 mm. wide
5 cm wide x 15 cm high x 2.4 m long , and -2 to +5% tilting channel with pump, feed tank, storage tank, and accessories.....
Product Code: FM153
TILTING FLOW CHANNEL, 75 mm. wide
7.5 cm wide x 25 cm high x 300 cm long, and –2 to +5% tilting channel with pump, feed tank, storage tank, accessories, and models.....
Product Code: FM154
TILTING FLOW CHANNEL, 100 mm. wide
10 cm wide x 30 cm high x 400 cm long –2 to +5% tilting, with pump, feed tank, storage tank accessories and models.....
Product Code: FM155
TILTING FLOW CHANNEL, 100 mm. wide
10 cm wide x 30 cm high x 400 cm long –2 to +5% tilting, with pump, feed tank, storage tank accessories and models. Built in adjustable bed at mid section, adjustment range ± 10 cm....
Product Code: FM156
TILTING FLOW CHANNEL, 150 mm. wide
15 cm wide x 35 cm high x 600 cm long, and –1 to +3% tilting channel with pump, feed tank, storage tank, accessories, and models.....
Product Code: FM157
TILTING FLOW CHANNEL, 150 mm. wide, Adjustable bed.
15 cm wide x 35 cm high x 600 cm long, and –1 to +3% tilting channel with pump, feed tank, storage tank, accessories, and models. Built in adjustable bed at mid section, adjustment range ± 10 cm....
Product Code: FM158
TILTING FLOW CHANNEL, 300 mm. wide
30 cm wide x 45 cm high x 12 m long, and –1 to +3% motorized tilting channel with pump, feed tank, storage tanks, sluice gates, motorized trolley, accessories, and models.....
Product Code: FM159
TILTING FLOW CHANNEL, 600 mm. wide
60 cm wide x 75 cm high x 18 m long, -1 to +3% motorized tilting channel with pump, feed tank, storage tank, sluice gates, motorized trolley, accessories and models.....
Product Code: FM160
TILTING SEDIMENT FLOW CHANNEL, 600 mm. wide
60 cm wide x 70 cm high x 18 m long, -1 to +3% motorized tilting ; can be used for study of flow phenomena without sediment or study of sediment transport and bed form in open channel ; complete with pump, feed tank, storage tank, sluice gates, motorized trolley, sand, sediment feeder, sediment trap, accessories and models.....
Product Code: FM161
VARIAC SPEED CONTROL AND POWER MEASUREMENT UNIT
Input : 220V 1 ph. Output : 0-250 V. 4A. HP 102 VARIAC SPEED CONTROL UNIT Output : 0-250V. 8A.....
Product Code: FM162
ADVANCED INVERTER WITH COMPUTER INTERFACE UNIT
The unit consists of an advanced inverter for controlling and indicating motor speed as well as for calculating motor output torque and power, an analog to digital signal converter, and ports for motor, sensors and computer....
Product Code: FM163
ANALOG TO DIGITAL SIGNAL CONVERTER
8 channel analog to digital signal converter with input ports for analog signals and output port for digital signals.....
Product Code: FM164
ADVANCEDTO DIGITAL SIGNAL CONVERTER WITH POWER MEASUREMENT UNIT
This unit houses ,an analog to digital signal converter, a watt sensor ports for the variac, sensors and computer.....
Product Code: FM165
CENTRIFUGAL PUMP DEMONSTRATION UNIT, Computer Interface
A bench top unit with 0.37kW centrifugal pump and motor, storage tank; sensors and software. To be used with HP 100, HP 107 and computer or HP 104 and computer.....
Product Code: FM166
COMPACT CENTRIFUGAL PUMP TEST SET, Motor Dynamometer
A bench top unit with centrifugal pump, 0.55 kW motor dynamometer, speed controller, storage tank, and measuring instruments.....
Product Code: FM167
COMPACT CENTRIFUGAL PUMP TEST SET
A bench top unit with 0.37 kW centrifugal pump and motor, storage tank, and measuring instruments. Optional : Advanced inverter for speed control as well as for motor speed and output power indication.....
Product Code: FM168
COMPACT CENTRIFUGAL PUMP TEST SET, Multi Speed
A bench top unit with 0.18 kW multi speed centrifugal pump and motor, storage tank, and measuring instruments.....
Product Code: FM169
CENTRIFUGAL PUMP TEST SET
A centrifugal pump with motor for speed and output power indicator, 1.5 kW advanced inverter, storage tank, measuring instruments.....
Product Code: FM170
TURBINE PUMP DEMONSTRATION UNIT, Computer Interface
A bench top unit with 0.37kW turbine pump and motor, storage tank, sensors, and software. To be used with HP 100, HP 107 and computer or HP 104 and computer.....
Product Code: FM171
COMPACT TURBINE PUMP TEST SET
A bench top unit with 0.37 kW turbine pump and motor, storage tank, and measuring instruments. Optional : Advanced inverter for speed control as well as for motor speed and output power indication.....
Product Code: FM172
TURBINE PUMP TEST SET
A turbine pump with motor 1.5 kW advanced inverter, storage tank, measuring instruments, and other optional items.....
Product Code: FM173
GEAR PUMP DEMONSTRATION UNIT, Computer Interface
A bench top unit with gear pump, 0.37kW motor, and storage tank, sensors, and software. To be used with HP 100, HP 107 and computer or HP 104 and computer.....
Product Code: FM174
COMPACT GEAR PUMP TEST SET
A bench top unit with gear pump, 0.37kW motor, storage tank, and measuring instruments. Optional: Advanced inverter for speed control as well as for motor speed and output power indication.....
Product Code: FM175
GEAR PUMP TEST SET
A gear pump with motor 1.5 kW advanced inverter, storage tank, measuring instruments.....
Product Code: FM176
RECIPROCATING PUMP DEMONSTRATION UNIT, Computer Interface
A bench top unit with a reciprocating pump, 0.37kW motor with reduction gear, storage tank measuring tank, pressure relief valve, pulse chambers, sensors, and software. To be used with HP 100, HP 107 and computer or HP 104 and computer.....
Product Code: FM177
COMPACT RECIPROCATING PUMP TEST SET
A bench top unit with reciprocating pump, 0.37kW motor, storage tank, pump pressure relief valve, pulse chambers, and measuring instruments. Optional : Advanced inverter for speed control as well as for motor speed and output power indication.....
Product Code: FM178
RECIPROCATING PUMP TEST SET
A reciprocating pump with motor 0.75 kW advanced inverter, pulse chambers, pressure relief valve, dash pot, storage tank, measuring instruments, and other optional items.....
Product Code: FM179
COMPACT SERIES AND PARALLEL PUMPSDEMONSTRATION UNIT, Computer Interface
A bench top unit with two 0.37 kW centrifugal pumps and motors, storage tank , and series and parallel operation pipings, sensors, and software. To be used with HP 100, HP 107 and computer or HP 104 and computer.....
Product Code: FM180
COMPACT SERIES AND PARALLEL PUMP TEST SET, Motor Dynamometer
A bench top unit with two sets of centrifugal pump and 0.55 kW motor dynamometer, speed controllers, storage tank, measuring instruments, and other optional items.....
Product Code: FM181
COMPACT SERIES AND PARALLEL PUMP TEST SET
A bench top unit with two 0.37 kW centrifugal pumps and motors, series and parallel operation pipings, storage tank, and measuring instruments. Optional : Advanced inverter for speed control as well as for motor speed and output power indication.....
Product Code: FM182
